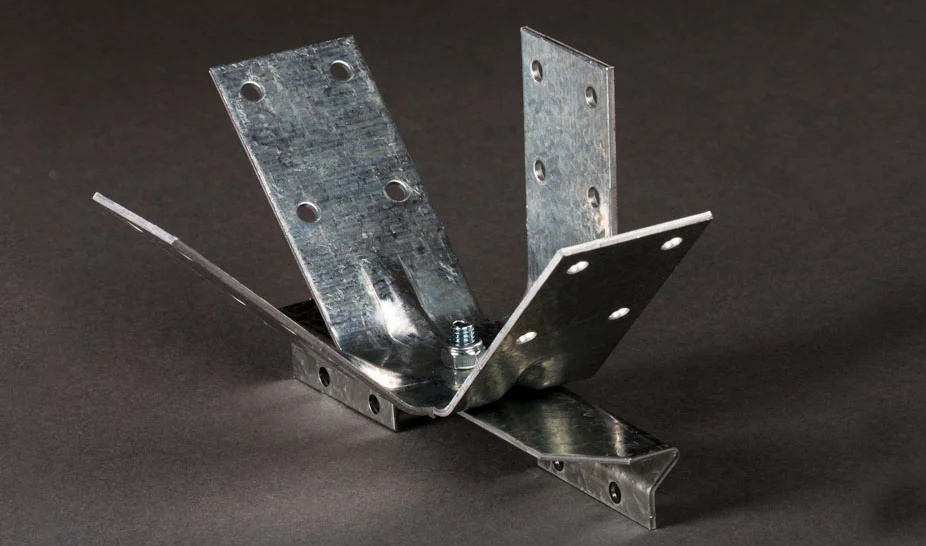

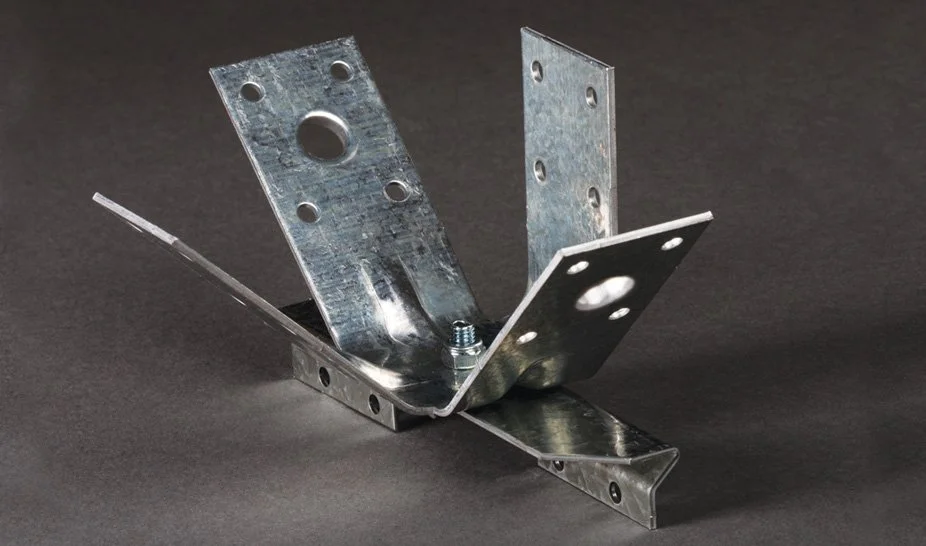

GRIDLOK® SCREW FIX TCR

Designed and tested to provide a consistent 280kg/f of bracing capacity to the top cross rail of plasterboard ceiling systems. Simple click fit and screw off process dramatically reduces time required to complete back bracing. Plenum height chart provide guidance on steel stud BMT required for bracing arms. Features the ability to rotate the unit though 360 degrees minimising service clashes.
Stock code: GRD-10S

DOWNLOADS

CLICK HERE TO DOWNLOAD THE GRIDLOK® QS COMPARISON

CLICK HERE TO DOWNLOAD THE GRIDLOK® SCREW FIX TCR PDF FILE

CLICK HERE TO DOWNLOAD THE GRIDLOK® SCREW FIX TCR ISOMETRIC VIEW PDF FILE

CLICK HERE TO DOWNLOAD THE GRIDLOK® SCREW FIX TCR DWG FILE

CLICK HERE TO DOWNLOAD THE GRIDLOK® SCREW FIX TCR RFA FILE
